TEMPSENS · TMC53

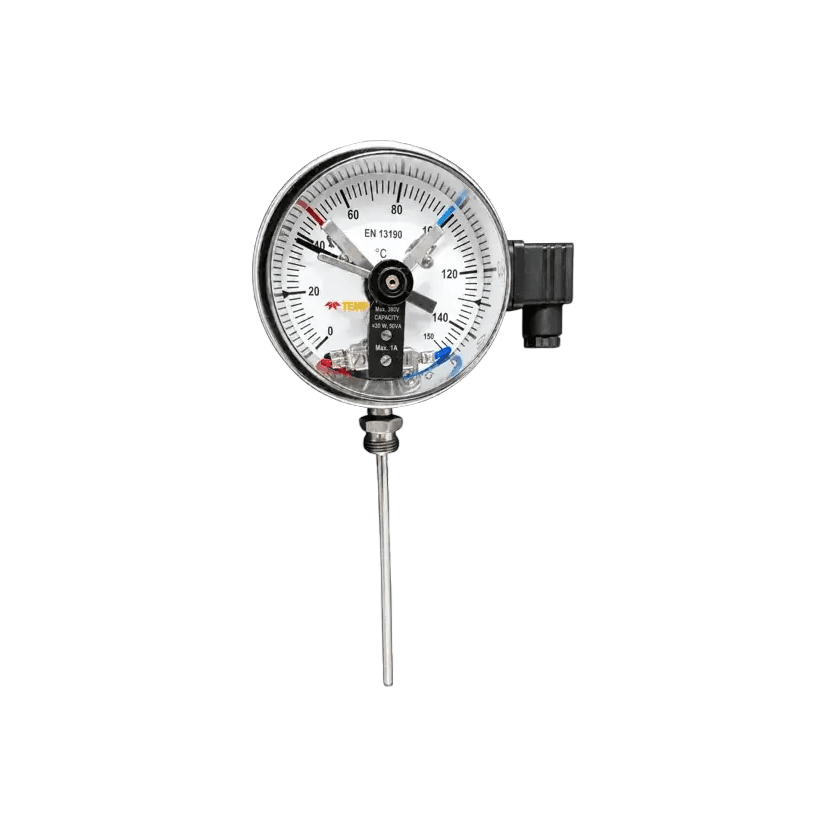

Gas Filled Temperature Gauge With Electric Contact

Name: Gas Filled Temperature Gauge With Electric Contact
Brand: TEMPSENS
SKU: TMC53

Temperature range: -50 up to 800°C

Category: Industrial sensors · Dial thermometers

Specifications by model

Characteristic	Value
Généralités	General
Conception	EN 13190
Tolérance	±1.0% of full scale
Température ambiante	-20…+60°C
Température de stockage	-50…+70°C without liquid dampening -20…+60°C with liquid dampening
Over range limits	110% full scale
Stem pressure rating	25 bar (Without thermowell)
Soudures	TIG argon arc welding
Version standard	Standard Version
Diamètre du cadran	100 mm / 150 mm
Étendue	-50 up to 800°C
Montage	Direct Bottom connection
Stem size	6.0 mm / 8.0 mm / 9.5 mm / 12 mm
Indice de protection	IP 65
Longueur de la tige	150 mm standard up to 3000 mm
Raccordement	Adjustable connection
Raccord process	½" NPT (M) / ½" BSP (M)
Matériau	Material of construction
Élément sensible	Inert Gas Filled sensor bulb
Matériau du boîtier et de la lunette	AISI 304 SS
Stem material	AISI 316 SS
Raccordement	AISI 316 SS
Cadran	Aluminum, black graduation on white background
Aiguille	Micro-zero adjustable, aluminum, black powder coated
Joints	Neoprene / NBR
Hublot	Sheet glass
Electric Contact	Double; Break contact + Make contact
Electrical Termination	4 Pin Din connector
Versions remplies	Filled version
Hublot	Shatterproof safety glass / Polycarbonate Glass ( Doom Glass)
Joints, disque de sécurité et bouchon de remplissage	NBR / Viton
Liquide amortisseur	Dielectric Oil
Effet de la température	When temperature of the measuring system deviates from reference temperature (+20): max ±0.4% / 10K of full scale value.

• All stainless steel welded construction • Follows EN 13190 / ASME B40.200 • Accuracy as per Class 1 • Dry / Fillable / Liquid filled
