TEMPSENS · TMC29-1

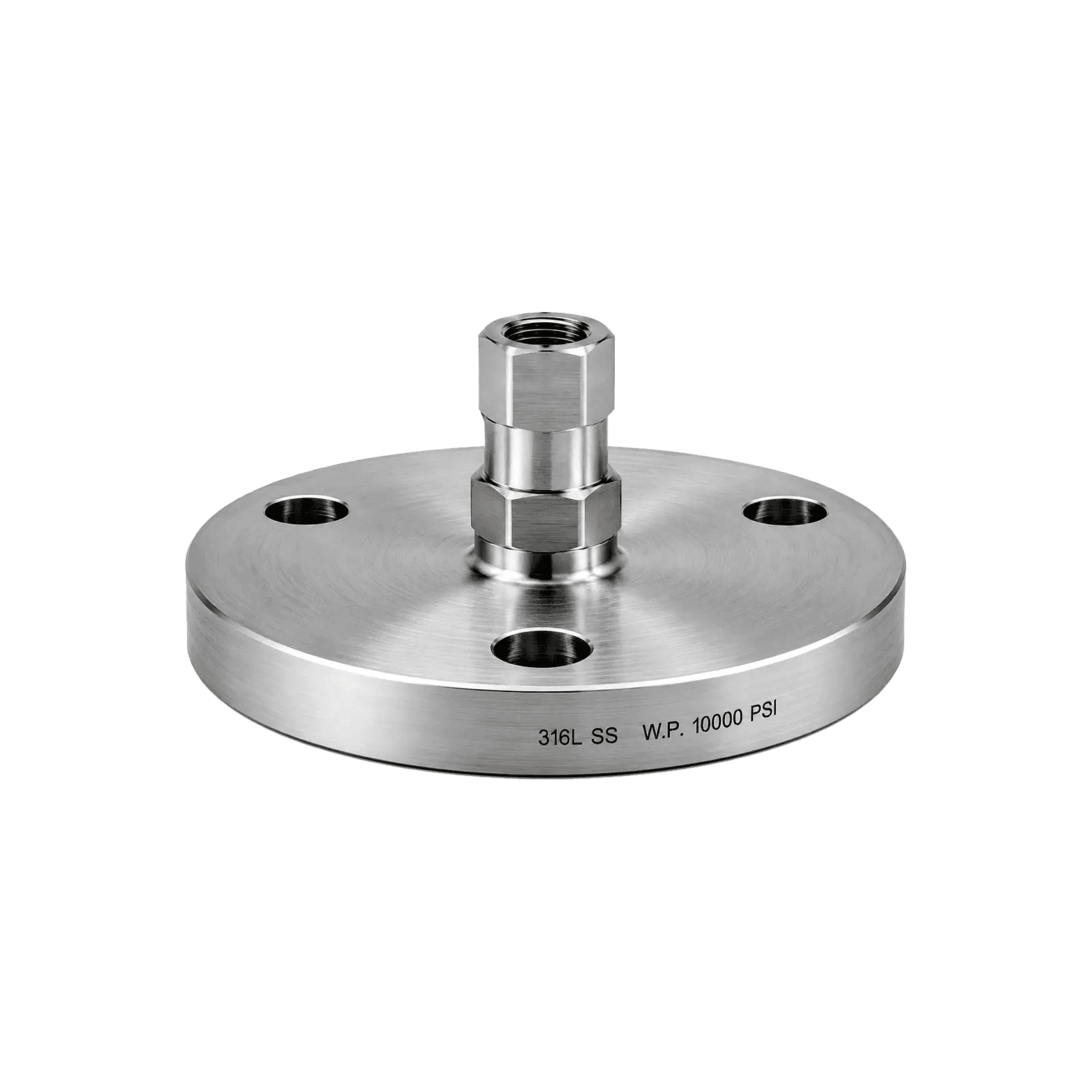

فاصل غشائي مستوٍ بشفة TMC29-1
مدى الحرارة: 370°C max
الفئة: المجسات الصناعية · فواصل غشائية
المواصفات حسب الموديل
| الخاصية | القيمة |
|---|---|
| Généralités | General |
| Flange design | ANSI B16.5 / EN 1092-1 / BS-10 |
| Température de stockage | -40…+65°C |
| Température de service | 370°C max |
| Soudures | Laser welding for Diaphragm and TIG argon arc welding for other parts |
| Version standard | Standard Version |
| Type de séparateur | -1...250 bar (Flange ≥ 1.5") / 4...250bar (Flanges ½" to 1") |
| Raccordement | ½" NPT (F) / ½" BSP (F) |
| Fluide de remplissage | Silicon DC 200 [-40…205°C] |
| Raccord process | Flange as per standard between ½'' to 4" |
| Type de portée de bride | Flat Face / Raised Face / Ring Type Joint |
| Parties en contact | Wetted parts protection |
| Température de service | 200°C max. |
| Lining on Diaphragm | Lining on Diaphragm |
| Matériau | PTFE Coating - 100 Micron thick |
| Température de service | 150°C max. |
| Coating on Bottom chamber & diaphragm | Coating on Bottom chamber & diaphragm |
| Matériau | PTFE [spray coated & oven baked] |
| Température de service | 150°C max. |
| Matériau | Material of construction |
| Élément sensible | Diaphragm |
| Membrane | AISI 316L SS / Monel 400 / Hastelloy C-276 Inconel 600 / Titanium / Tantalum |
| Flange material | ASTM A105 / AISI 304SS /AISI 316 SS Hastelloy C-276/ AISI 316L SS / Monel / Titanium/ Tantalum |
| Hardware | AISI 304 SS |
| Capillaire | AISI 304 SS / AISI 316 SS |
| Armure | AISI 304 SS / AISI 316 SS / PVC |
| Distance déportée | 0.25 Mtr. to 25 Mtr. |
