TEMPSENS · A450+ FO PL

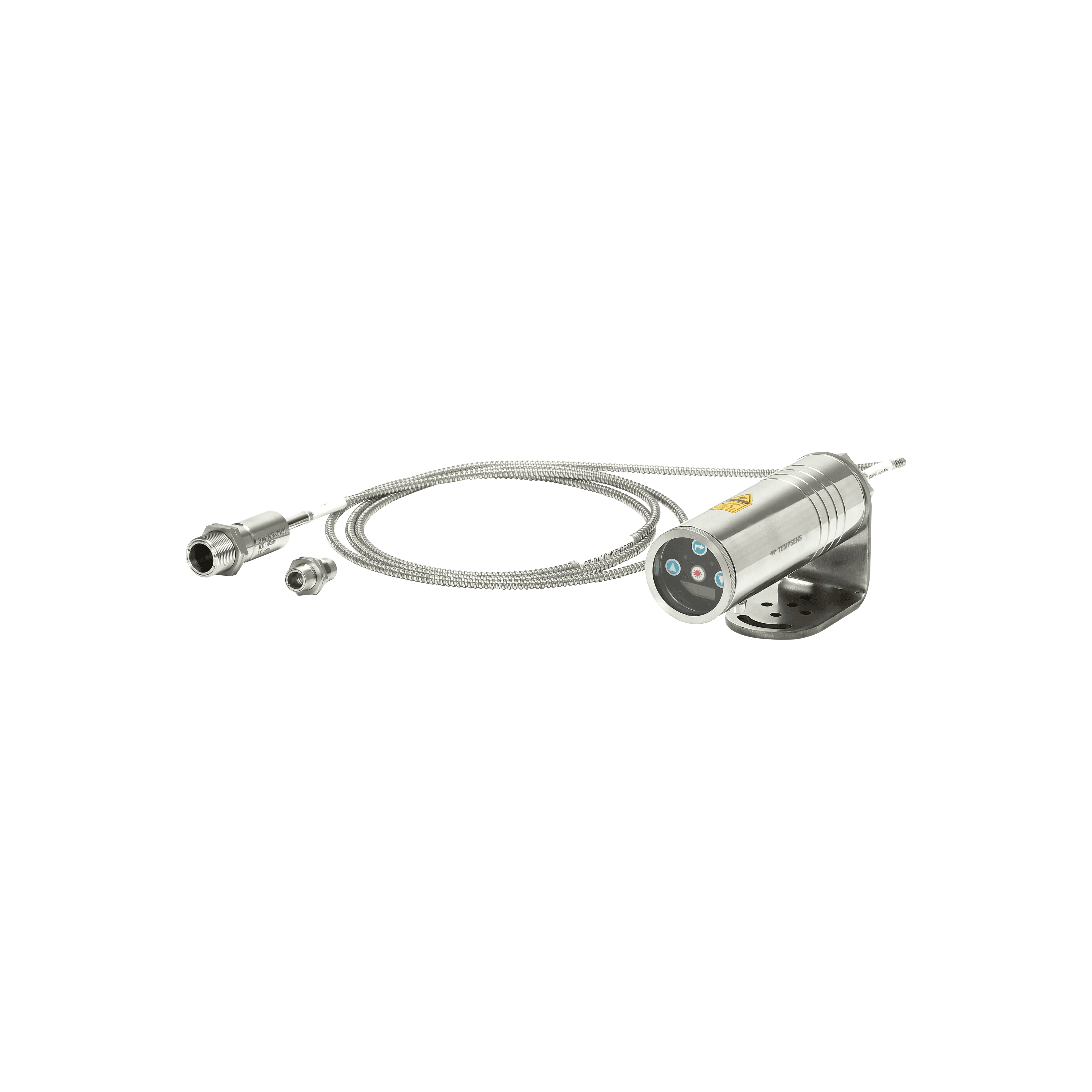

A450+ FO PL Pyrometer
Temperature range: 600°C to 2500°C
Category: Industrial sensors · Infrared pyrometers
Specifications by model
| Characteristic | Value |
|---|---|
| Plage de température (Analog sub-range adjustable) | 600°C to 2500°C |
| Domaine spectral | 1.0 µm |
| Type de photodétecteur | Si |
| Rapport distance / diamètre de visée | 100:1 OH(I) 200:1 OH(II) 200:1 OH(ll) – Variable 400:1 OH(lll) – Variable |
| Émissivité | 0.1….1.0 adjustable |
| Temps de réponse | 2 msec adjustable upto 10 sec |
| Tolérance | ± 0.3% of the measured value + 1°C |
| Répétabilité | 0.1% of reading in °C + 1°C |
| Option de visée | Laser Pilot Light(PL) |
| Sortie analogique | 0-20mA, 4-20mA (User selectable) |
| Sortie numérique | RS-485/RTU Modbus Serial Interface(User Selectable) |
| Température de fonctionnement | 0°C…….70°C Optical Head and Fiber Optic Cable upto 250°C |
| Température de stockage | -20°C…70°C |
| Adjustable Parameters, Features via Software and Android app | Emissivity, Response Time, Clear Time (Peak Picker), Analog Output, Analog Scale (Sub range), Unit Of Temperature(°C/°F), Communication mode (Comm. mode), Record feature, Relay set point & hysteresis, etc. |
| Adjustable Parameters, Features via Keypad | Emissivity, Response Time, Clear Time (Peak Picker), Analog Output, Analog Scale (Sub range), Unit Of Temperature(°C/°F), Communication mode (Comm. mode), Relay set point & hysteresis, address, etc. |
| Sortie relais | One Relay output with hysteresis 60V DC / 42 AC RMS, 0.4 A |
| Alimentation | 12V to 28V DC with reverse voltage protection |
| Consommation | Max 4.0 watt |
| Puissance du laser | <1 m watt (only PL model) |
| Classe de protection | Ip65 |
| Corps | Stainless Steel |
| Isolation | Power Supply, Digital Output and Analog Output are galvanically islolated against each other |
| Humidité de fonctionnement | 10-95%, Non-Condensing Conditions |
| Poids | 1200g Dia= Ø 56mm; Length=188.5mm |
Full description
A450+ FO PL is a highly accurate digital single color Fiber Optic pyrometer to provide high performance and low maintenance of non contact temperature measurement in demanding industrial and R&D environments. The IR pyrometer parameters can be selected via the key pads on the back panel. The settings are displayed on the OLED Display. In the measuring mode real time temperature is displayed. The pyrometers are equipped with RS485; analog outputs 0/4….20. Switching laser ON/OFF does not effect the measurement. The IR pyrometer parameters can be selected via the key pads on the back panel. The settings are displayed on the OLED Display. In the measuring mode real time temperature is displayed.
• Wide temperature ranges from 600°C to 2500°C
• Fast Response Time
• Spectral range 1.0 μm….1.6 μm
• Integrated OLED Display & Parameterizing Keys
• Laser targeting light for high precision targeting
• Analog output options 0…20mA, 4…20mA
• RS-485/RTU Modbus Serial Interface(User Selectable)
• User friendly PC software for communication
• Green LED for pyrometer status indication and Red LED for Laser ON/OFF indication (PL)
