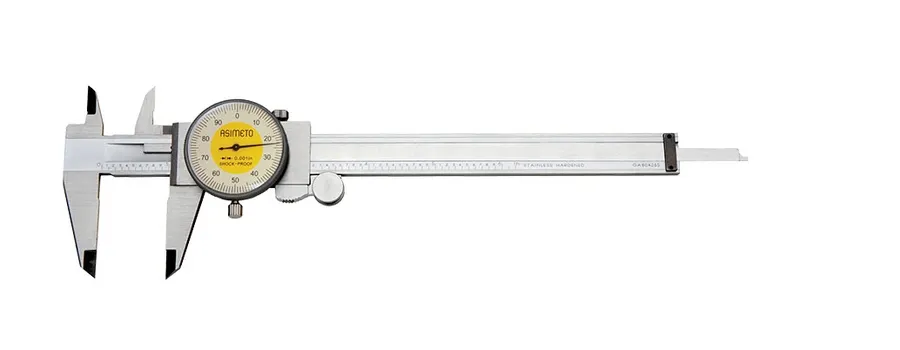

Pied à coulisse à cadran (séries 303 / 304)

ASIMETO · Séries 303 (inox) / 304 (aluminium)

Dial Caliper (303 / 304 Series)

Dial caliper, 0–300 mm, 0.01 or 0.02 mm graduation, stainless (303) or aluminum (304) housing, thumb wheel included.

Request a quote Datasheet

Category: Measuring instruments · Calipers

Specifications by model

ÉtenduePrécisionBoîtier / graduationRéférence
0 – 150 mm (0-6")±0,02 mmInox — 0,01 mm303-06-1
0 – 200 mm (0-8")±0,04 mmInox — 0,01 mm303-08-1
0 – 300 mm (0-12")±0,04 mmInox — 0,01 mm303-12-1
0 – 150 mm (0-6")±0,02 mmAluminium — 0,01 mm304-06-5
0 – 200 mm (0-8")±0,04 mmAluminium — 0,01 mm304-08-5
0 – 300 mm (0-12")±0,04 mmAluminium — 0,01 mm304-12-5
0 – 150 mm±0,02 mmAluminium — 0,02 mm304-06-6
0 – 200 mm±0,03 mmAluminium — 0,02 mm304-08-6
0 – 300 mm±0,04 mmAluminium — 0,02 mm304-12-6

Full description

Dial caliper, 0.01 mm (0.001'') or 0.02 mm graduation. Stainless-steel construction with hardened measuring faces (303 Series) or sturdy ergonomic die-cast aluminum dial housing (304 Series), usable without damage in the harshest manufacturing environments (hot steel chips). Preloaded dual pinion eliminates backlash and provides better repeatability and extra-smooth operation. Thumb wheel included.
