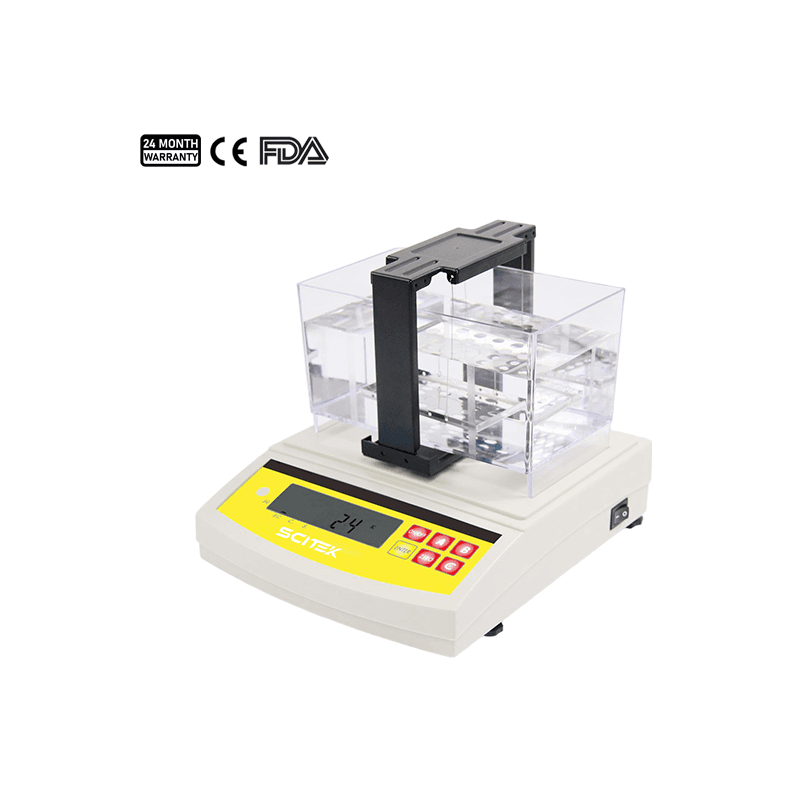

Densimètre pour métaux précieux DME-PM (120 à 3000 g)

DME-120PM · DME-200PM · DME-300PM · DME-600PM · DME-900PM · DME-1200PM · DME-2000PM · DME-3000PM

مقياس كثافة المعادن الثمينة DME-PM (120 إلى 3000 غ)

كثافة المعادن الثمينة

طلب عرض سعر

الفئة: أدوات القياس · مقاييس الكثافة

المواصفات حسب الموديل

الخاصيةDME-120PMDME-200PMDME-300PMDME-600PMDME-900PMDME-1200PMDME-2000PMDME-3000PM
Capacity (g)120200300600900120020003000
DisplayLCD display
Weight Resolution (g)0.0010.0010.005 (0.01 g optional)0.0050.010.010.010.01
Necessary Weight for Density (g)22445555
Density Resolution0.001 g/cm 3
Measuring Time10 S
Testing BoardCompleted high-capacity plastic testing board
Measuring TypeTraditional gold and platinum jewelry, necklace, bracelet, ring, large bullion, craft, and gold, silver, copper, cadmium, nickel, tin. etc.
Gold ModeDisplay K ValueThe K value of mixture of gold, silver, and copper
Display Purity PercentThe purity percentage of mixture of gold, silver and copper
K Value Range10~24 K
Copper and Silver Proportion SettingCycle seting (default 7:3)
Testing ErrorDefault as ±1K; also can be set up as 0.1 K, 0.01 K, need to confirm with factory firstly
PlatinumDisplay ValuePT percent, density value, volume
ModePT Value RangePt600 - Pt1000
Other Precious MetalsFunctionOnly for DME-120PM and DME-200PM: measure the purity percentage of main materials in two kinds of mixture
Display ValueOnly for DME-120PM and DME-200PM: density value, volume, content percentage
settingOnly for DME-120PM and DME-200PM: density value of main materials and secondary materials setting
Measuring ContainerCompleted injection forming transparent professional measuring tank (size (L×W×H): 169×98×83 mm)
Parameter SettingWater temperature setting, measuring medium density setting
PrincipleArchimedes principle
Memory MethodTwo procedures
Correction MethodAuto calibration with one key, auto detection.
Output MethodOutput and print testing data conveniently with standard communication interface of RS-232C.
Standard AccessoriesHost, tank, test board, tweezer, thermometer, weight, wind and dust cover, a set of measuring particle parts, a set of measuring floating body parts, power transformer
Wind and Dust CoverAdopt the unicase dedicated wind and dust cover
Option AccessoriesPrinter
PowerDefault as AC 100 V–240 V (Europe standard),based on destination country which standards be took.
Main FeaturesSimple operation, digital display, accurate measuring, stable, durable.
External Size (W×D×H)195×230×197 mm
Shipping Size (W×D×H)440×180×345 mm
N.W./G.W. (kg)1.6 / 4.51.8 / 4.51.8 / 51.9 / 5.5

الوصف التفصيلي

مقياس كثافة إلكتروني للذهب والفضة والنحاس والمجوهرات، بسعة من 120 إلى 3000 غ بحسب الطراز. شاشة LCD، استبانة الوزن من 0.001 إلى 0.01 غ، والوزن الأدنى للعيّنة من 2 إلى 5 غ بحسب السعة.
